DS BNVD-1431 MK2
DS BNVD-1431 MK2

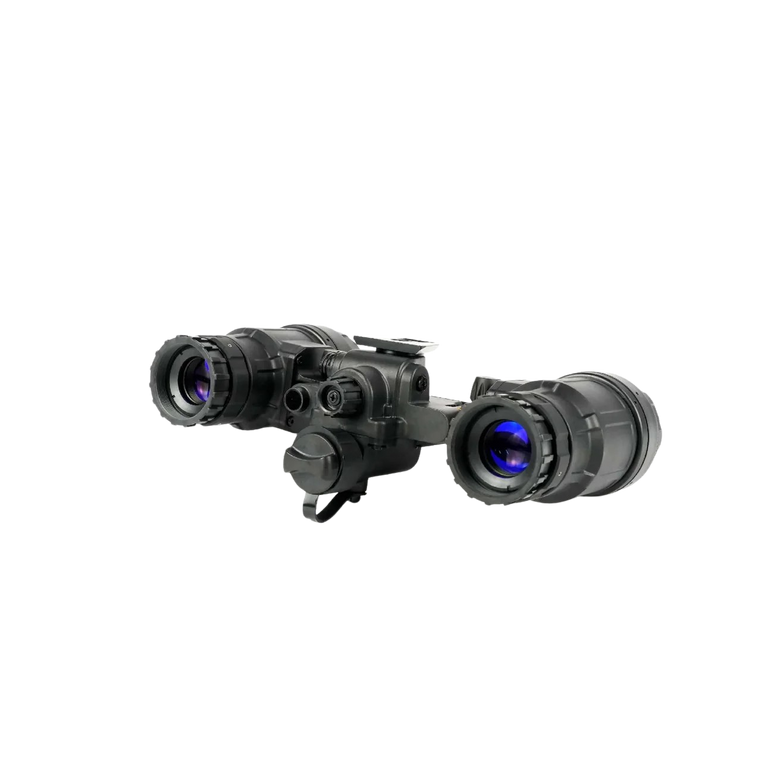

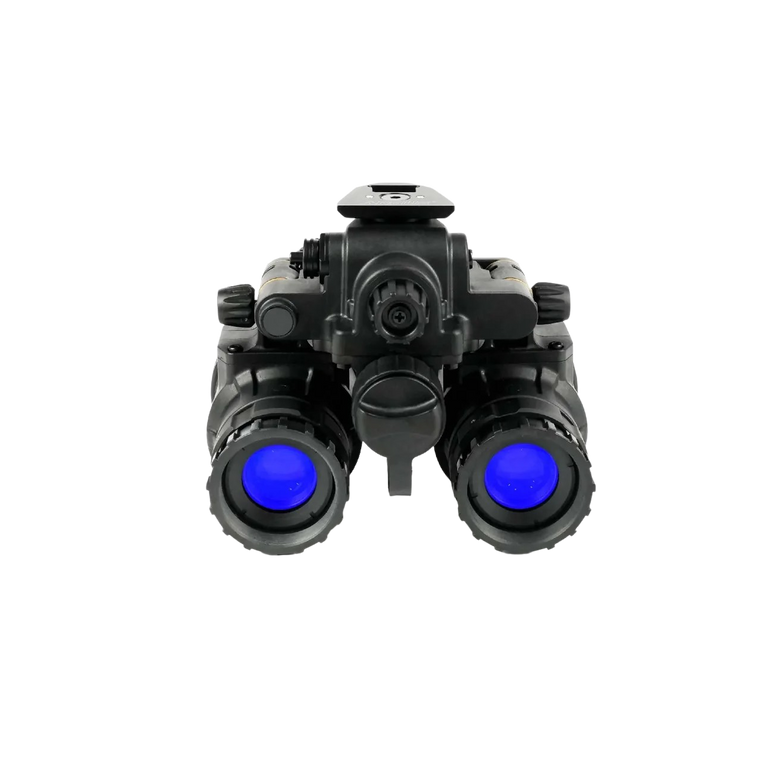

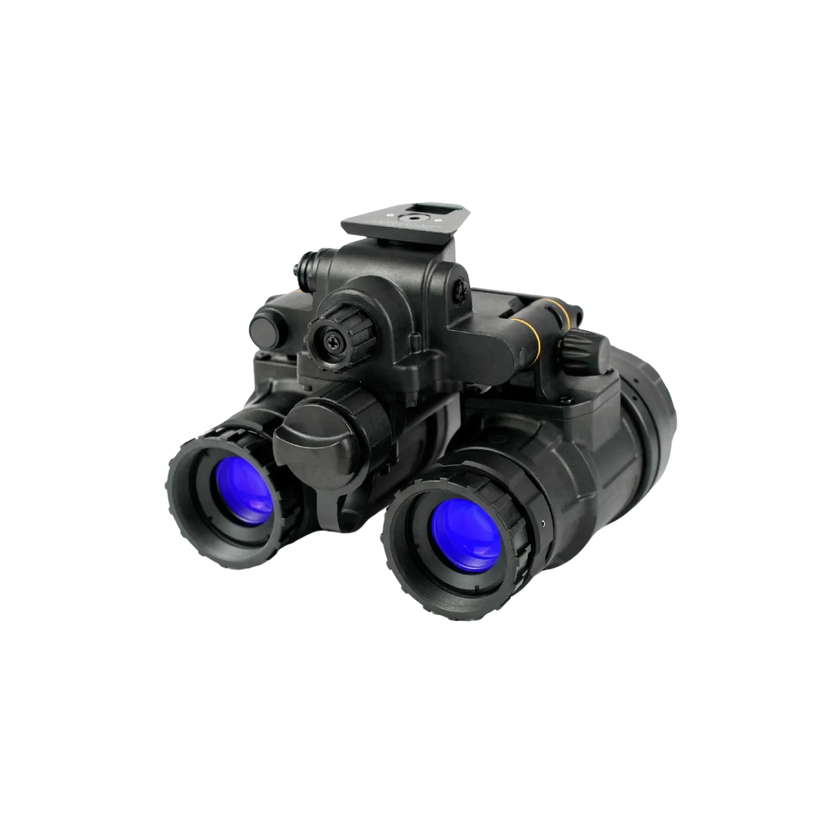

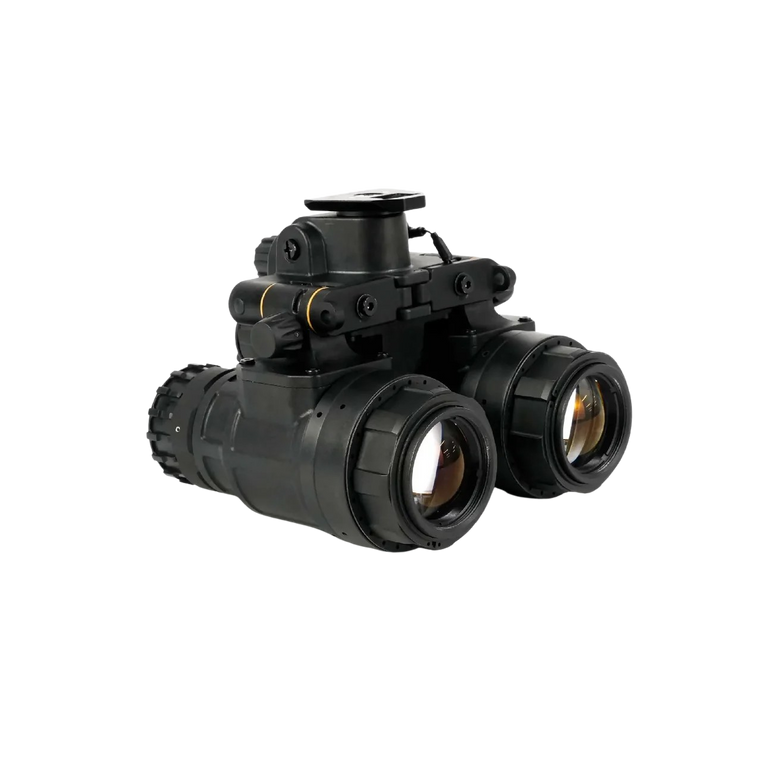

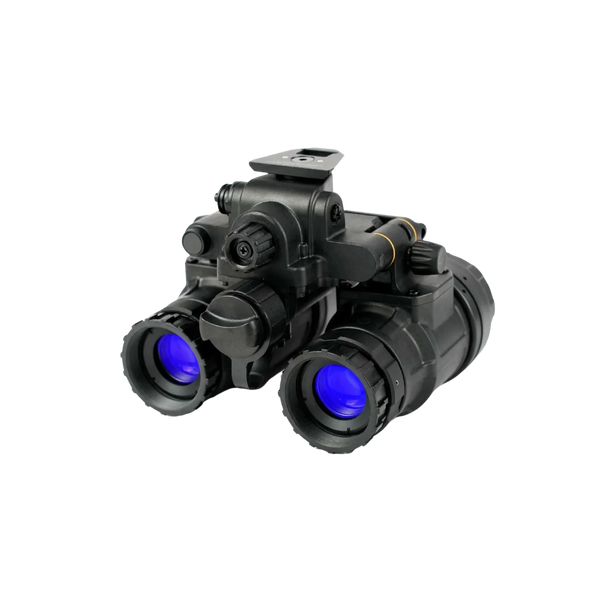

Denied Systems BNVD-1431 MK2 Binocular Night Vision Device
The Denied Systems BNVD-1431 MK2 is a versatile dual-tube night vision system designed to provide improved depth perception and situational awareness through both eyes. Its Gen 2+ P45 white-phosphor image intensifier tubes produce a clear, high-contrast image in low-light conditions. Depending on the selected tubes, configurations are available from entry-level 1400+ FOM through to high-performance 2400+ FOM options.
Independent articulating pods allow either side to be raised when transitioning between binocular and monocular viewing. Adjustable articulation tension and interpupillary distance stops help maintain a comfortable and consistent position for the individual user. The system also features a built-in infrared illuminator, tube-dependent gain control and an integrated dovetail interface for compatible helmet mounts.
The BNVD-1431 MK2 can operate for more than 15 hours from one onboard AA battery or over 50 hours using the included four-AA external battery pack. Its reinforced housing carries an IP68 water and dust-resistance rating, while its compatibility with standard PVS-14-style lenses provides access to a widely supported optical platform.
Technical Specifications
| Specification | Details |
|---|---|
| Image intensifier tubes | Dual Gen 2+ P45 white phosphor |
| Available performance | 1400+ to 2400+ FOM, depending on tube selection |
| Gain control | Tube dependent |
| Magnification | 1× |
| Field of view | 40° ± 2° |
| Focus range | Approximately 25 cm to infinity |
| Eyepiece diameter | 26 mm |
| Pod articulation | Up to approximately 140° |
| Interpupillary adjustment | Adjustable IPD stops |
| Helmet-mount interface | Standard dovetail |
| Housing colour | Matte black |
| Weight | Approximately 500–600 g, depending on configuration |
| Dimensions | Approximately 127 × 127 × 76 mm |
| Environmental rating | IP68 water and dust resistance |
| Operating temperature | −40°C to 60°C |
| Storage temperature | −55°C to 70°C |
Power and Functions
| Feature | Details |
|---|---|
| Onboard power | 1 × AA battery |
| Onboard operating time | 15+ hours |
| External power | Included four-AA strobe battery pack |
| External operating time | 50+ hours |
| Battery-pack connection | Four-pin Fischer cable |
| Articulating pods | Independent left and right adjustment |
| Pod shutoff | Configurable automatic shutoff when articulated upward |
| Built-in infrared illuminator | Yes |
| Automatic standby | Integrated motion-sensing function |
| Manual gain adjustment | Tube dependent |
| Articulation tension | User adjustable |
Included
| Included item | Quantity |
|---|---|
| Denied Systems BNVD-1431 MK2 | 1 |
| External strobe battery pack | 1 |
| Fischer power cable | 1 |
| Protective hard case | 1 |
| Objective lens covers | 2 |
| Eyepiece lens covers | 2 |
| Lens-cleaning cloth | 1 |
| Individual tube specification sheets | 2 |
