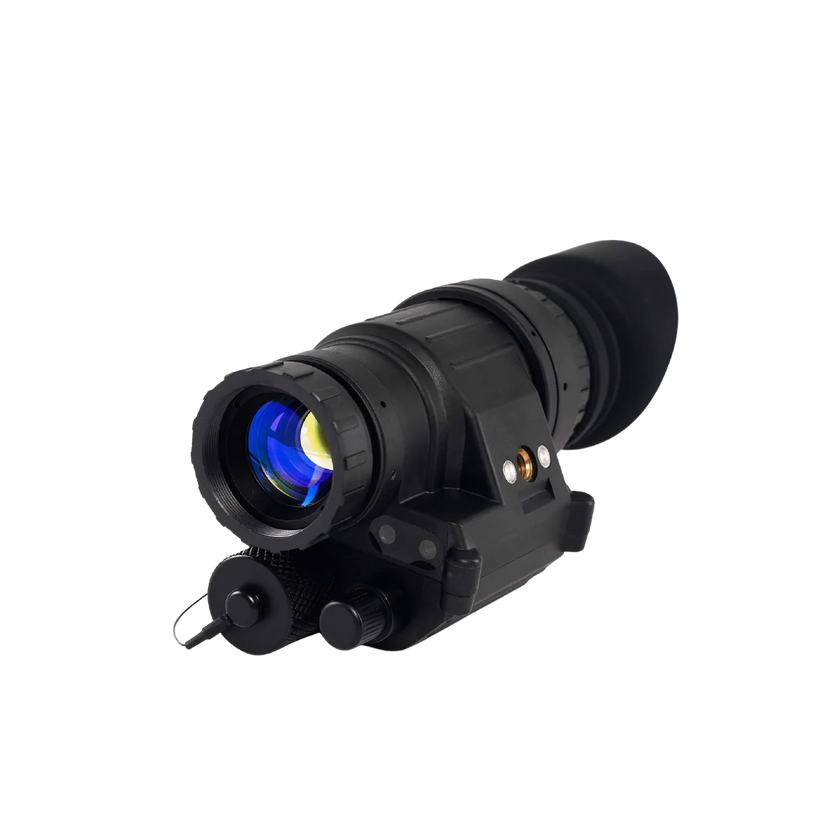

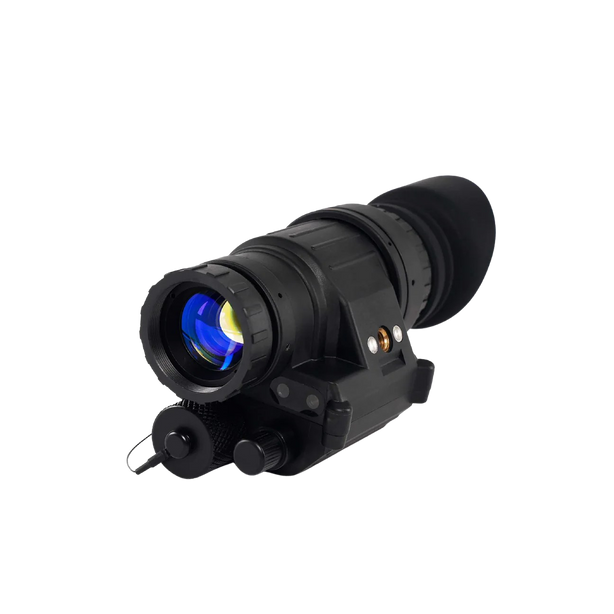

    Denied Systems PVS-14 Night Vision Monocular

    The Denied Systems PVS-14 is a compact and versatile single-tube night vision monocular. Its Gen 2+ P45 white-phosphor image intensifier provides a clear, high-contrast view in low-light conditions, making it suitable for night navigation, camping, wildlife observation, property management and professional applications.

    Use it handheld for quick observation or connect it to a compatible head or helmet mount for hands-free movement. The single-eye design allows the uncovered eye to retain its natural night adaptation, while true 1× magnification and a wide 40° field of view provide a natural view of the surrounding environment. Adjustable focus, diopter correction, tube-dependent gain control and a built-in infrared illuminator provide greater control across changing conditions.

    Powered by one widely available AA battery, the PVS-14 provides more than 50 hours of operation under typical conditions. Its durable housing is waterproof to 20 metres for up to two hours, while the established PVS-14 platform provides compatibility with a broad selection of suitable mounts and accessories.

    Technical Specifications

    Specification Details
    Image intensifier tube Gen 2+ P45 white phosphor
    Gain control Tube dependent
    Magnification 1×
    Field of view 40°
    Objective lens 27 mm, f/1.2
    Focus range 25 cm to infinity
    Diopter adjustment −6 to +2 dioptres
    Eye relief 25 mm
    Housing colour Matte black
    Waterproof rating 20 m for up to two hours
    Dimensions 114 × 64 × 70 mm

    Power and Functions

    Feature Details
    Power source 1 × AA battery
    Operating time 50+ hours
    Infrared illuminator Built in
    Infrared indicator LED Yes
    Low-battery indicator Yes
    Manual gain adjustment Tube dependent
    Helmet mounting Compatible J-arm included

    Included

    Included item Quantity
    Denied Systems PVS-14 1
    J-arm 1
    Protective hard case 1
    Objective lens cover 1
    Eyepiece lens cover 1
    Lens-cleaning cloth 1
    Individual tube specification sheet 1
