Field Ready DS BNVD-1431

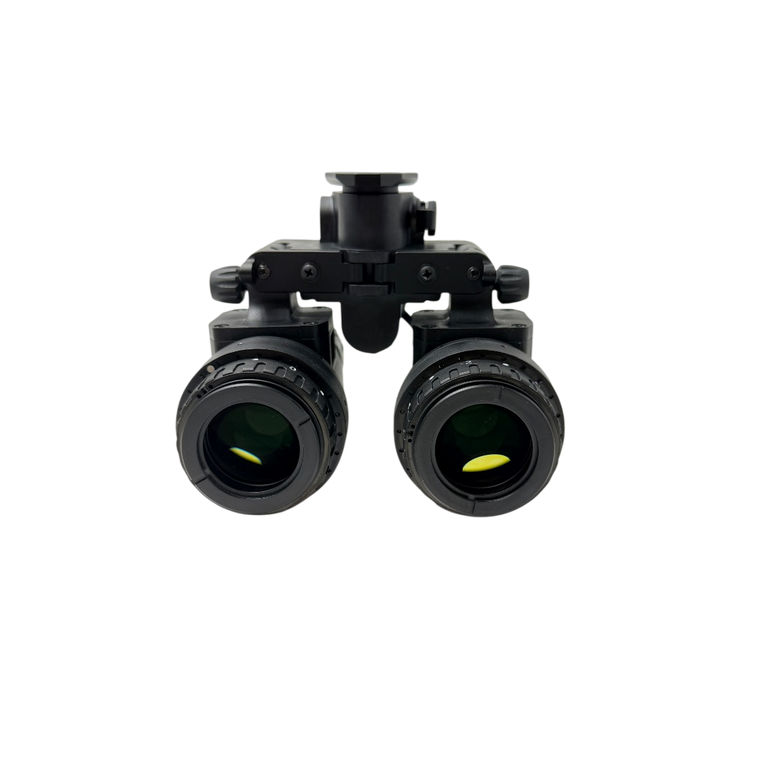

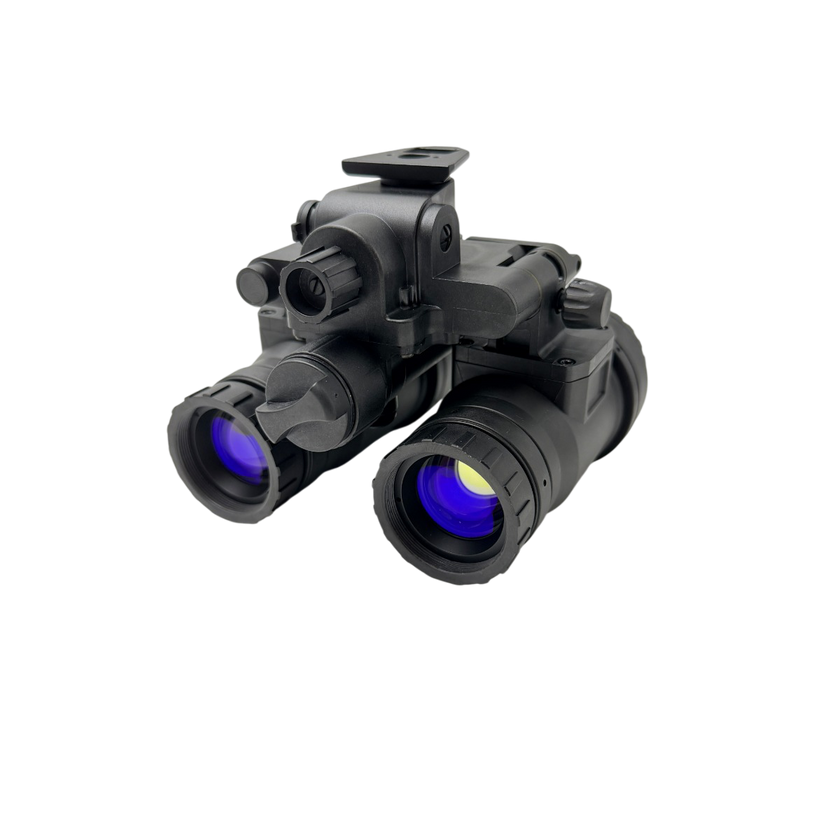

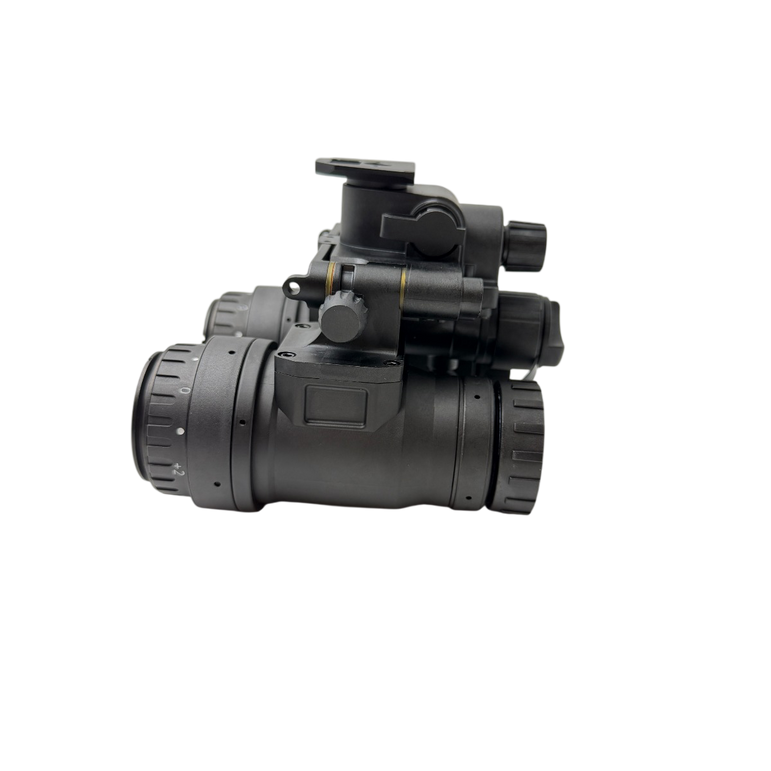

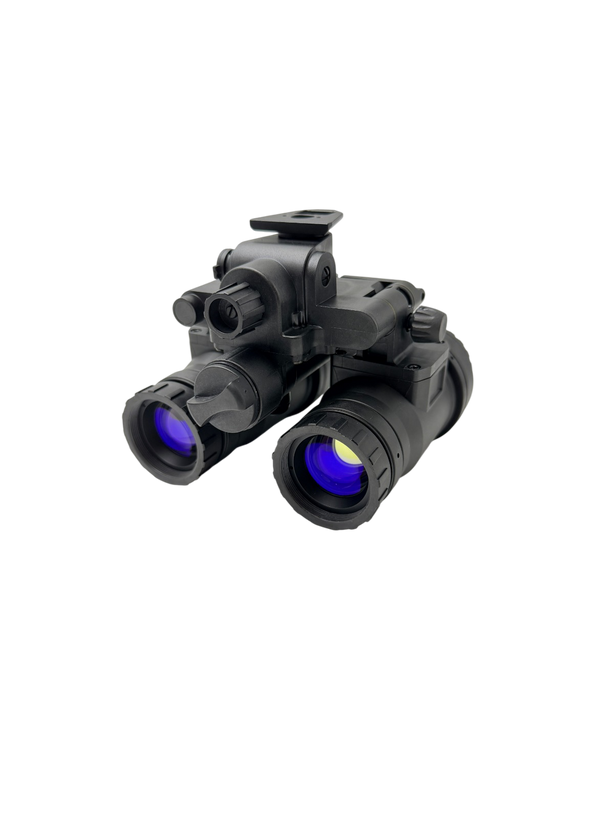

Field Ready DS BNVD-1431
Built on the proven legacy 1431 housing, the Field Ready DS BNVD-1431 delivers dependable night vision performance at an accessible price point. This rugged system combines reliable capability with practical value, making professional-grade night vision achievable for budget-conscious users.

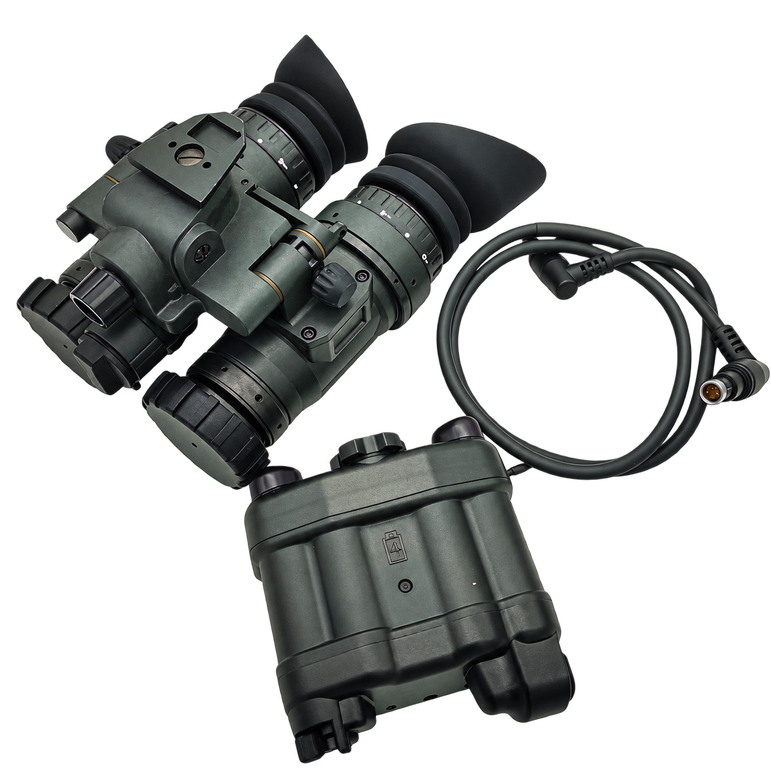

Comes equipped with a basic dovetail helmet mount and battery pack with fischer cable, so you're ready to mount straight out of the box. Built for those ready to take on their next adventure without breaking the bank.
Independent articulating pods allow either side to be raised when transitioning between binocular and monocular viewing. Adjustable articulation tension and interpupillary distance stops help maintain a comfortable and consistent position for the individual user. The system also features a built-in infrared illuminator, tube-dependent gain control and an integrated dovetail interface for compatible helmet mounts.
Engineered for real-world field use, it features CETC IIT Gen2 + image intensification technology and an IP67 rating that withstands harsh conditions. Whether you're on a long adventure, hunting or surveillance work, this system provides the performance you need without the premium cost.
Technical Specifications
| Specification | Details |
|---|---|
| Image intensifier tubes | Dual Gen 2+ P45 white phosphor |
| Available performance | 1400+ to 1800+ FOM, depending on tube selection |
| Gain control | Tube dependent |
| Magnification | 1× |
| Field of view | 40° ± 2° |
| Focus range | Approximately 25 cm to infinity |
| Eyepiece diameter | 26 mm |
| Pod articulation | Up to approximately 140° |
| Interpupillary adjustment | Adjustable IPD stops |
| Helmet-mount interface | Standard dovetail |
| Housing colour | Matte black |
| Weight | Approximately 600g, depending on configuration |
| Dimensions | Approximately 127 × 127 × 76 mm |
| Environmental rating | IP67 water and dust resistance |
| Operating temperature | −40°C to 60°C |
| Storage temperature | −55°C to 70°C |
Power and Functions
| Feature | Details |
|---|---|
| Onboard power | 1 × AA battery |
| Onboard operating time | 15+ hours |
| External power | Included four-AA strobe battery pack |
| External operating time | 50+ hours |
| Battery-pack connection | Four-pin Fischer cable |
| Articulating pods | Independent left and right adjustment |
| Pod shutoff | Configurable automatic shutoff when articulated upward |
| Built-in infrared illuminator | Yes |
| Automatic standby | Integrated motion-sensing function |
| Manual gain adjustment | Tube dependent |
| Articulation tension | User adjustable |
Included
| Included item | Quantity |
|---|---|
| Denied Systems Field Ready BNVD-1431 | 1 |
| External battery pack & Fischer power cable | 1 |
| Basic dovetail helmet mount | 1 |
| Protective hard case | 1 |
| Objective lens covers | 2 |
| Eyepiece lens covers | 2 |
| Lens-cleaning cloth | 1 |
| Individual tube specification sheets | 2 |
