Lightweight Helmet Mount
Lightweight Helmet Mount

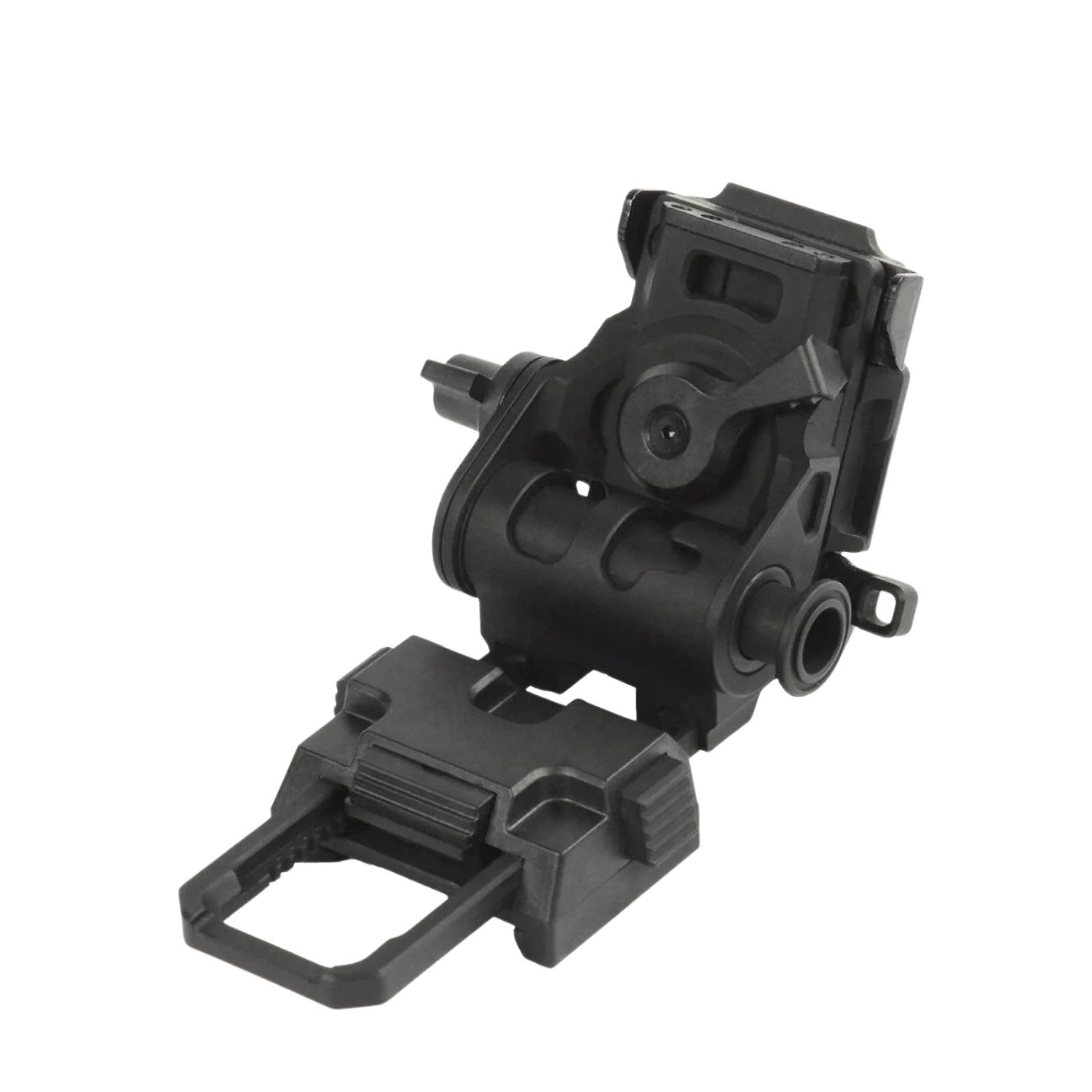

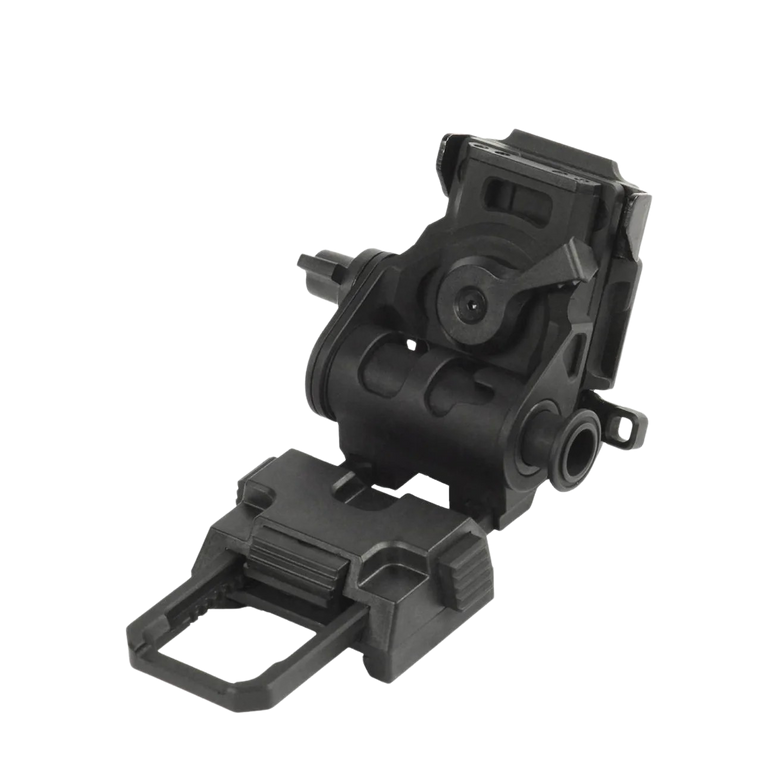

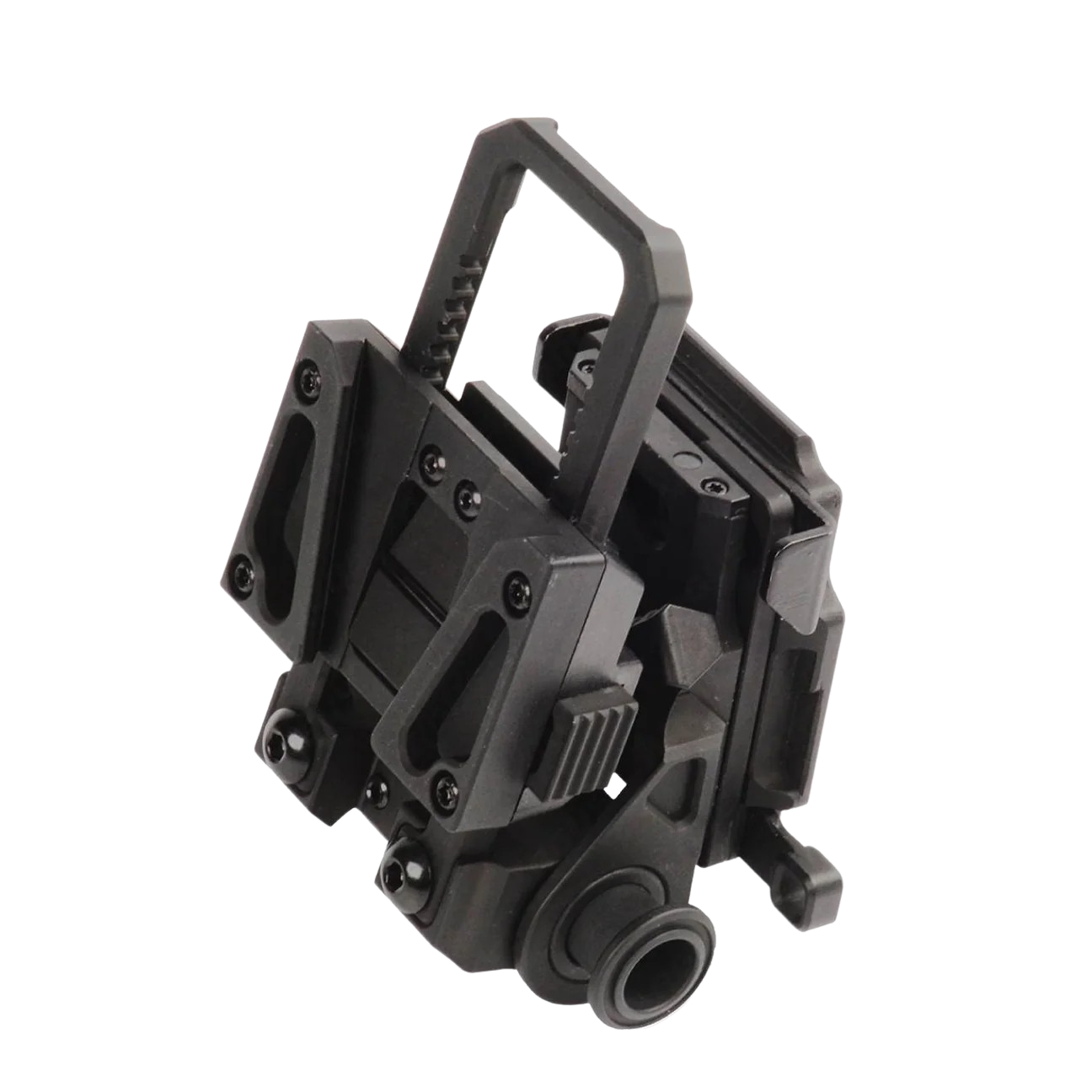

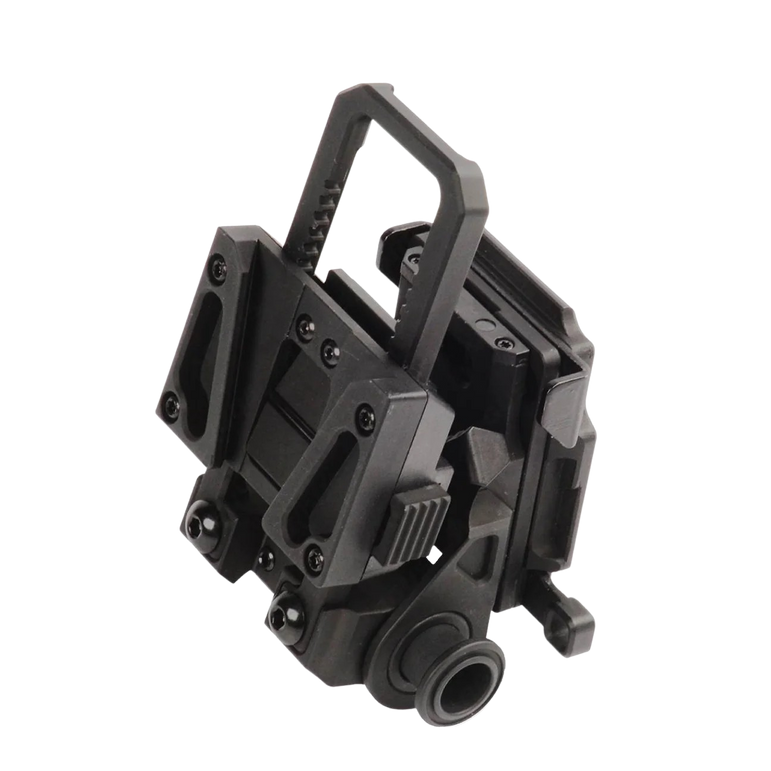

Denied Systems Lightweight Night Vision Mount
Build a lighter, cleaner and more capable helmet setup with the Denied Systems Lightweight Night Vision Mount. Weighing no more than 140 grams, its low-profile design keeps your night vision device close to the helmet when folded, reducing unnecessary bulk and helping improve balance.
Fast, precise and easy to operate, the mount supports single-handed deployment and adjustment—even while wearing gloves. Independent fore-and-aft, vertical and tilt controls allow your night vision device to be positioned exactly where you need it, while the secure locking system returns it to the same near-eye position after repeated raising and lowering.
The integrated safety-release mechanism is designed to detach from the helmet base when subjected to excessive external force, helping reduce snagging and potential neck injury. Constructed from high-strength aerospace-grade aluminium with a hard-anodised finish, it provides a strong and lightweight connection for compatible monocular, binocular and panoramic night vision systems.
Technical Specifications
| Specification | Details |
|---|---|
| Mounting interface | Standard dovetail |
| Helmet compatibility | Compatible FAST-style helmet bases and shrouds |
| Material | High-strength aerospace-grade aluminium alloy |
| Finish | Hard-anodised with matte fibre-reinforced polymer components |
| Weight | No more than 140 g |
| Expanded dimensions | 89 × 66 × 98 mm |
| Folded dimensions | 54 × 66 × 88 mm |
| Horizontal adjustment | 33 mm or greater |
| Vertical adjustment | 13.7 mm or greater |
| Tilt adjustment | 15° or greater |
| Flip-up range | 140° or greater |

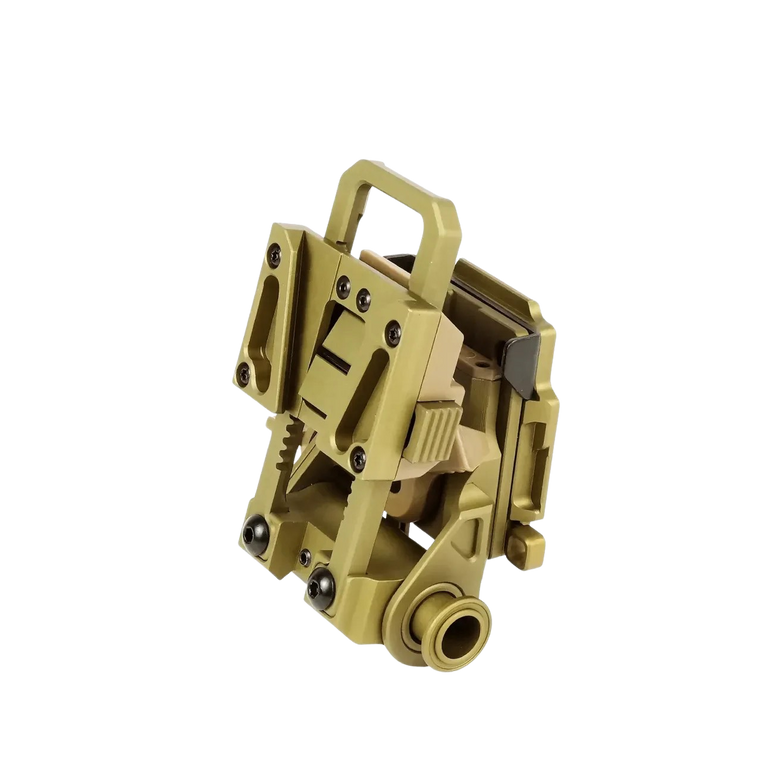

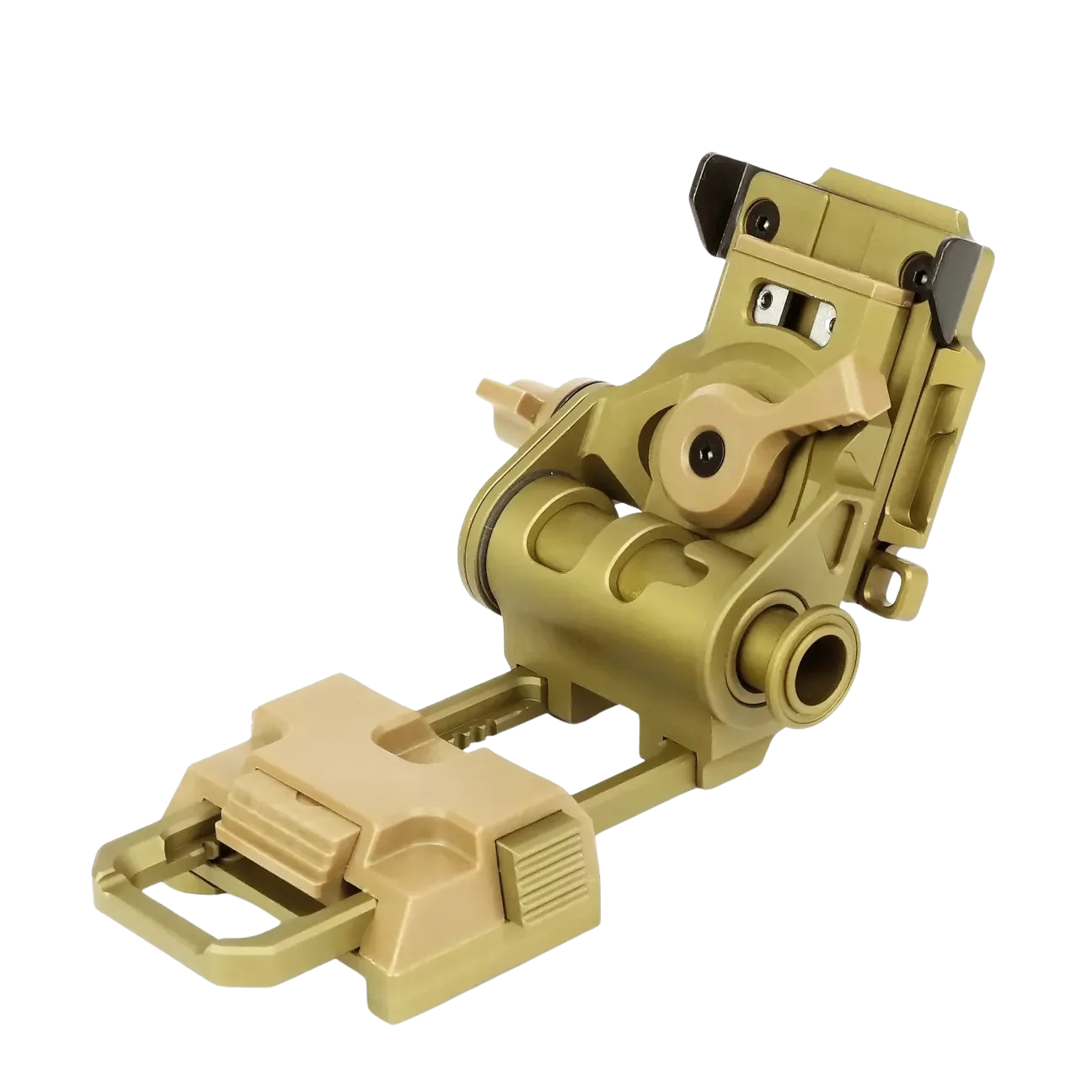

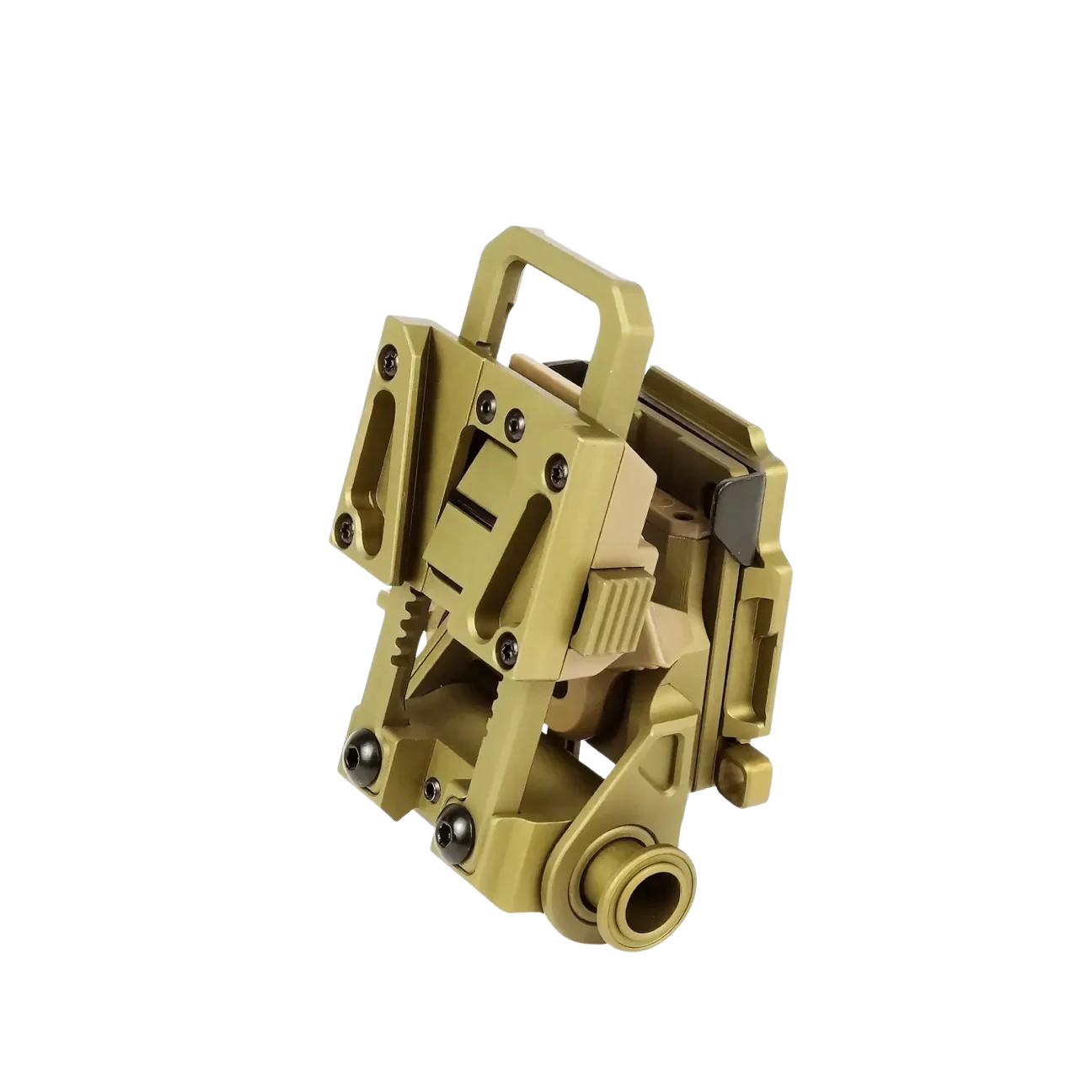

| Available colours | Black or desert tan |
Features and Adjustment
| Feature | Details |
|---|---|
| Low-profile storage | Holds the device close to the helmet when folded |
| Operation | Designed for single-handed deployment and adjustment |
| Safety release | Detaches under excessive external force to reduce snag and injury risk |
| Fore-and-aft adjustment | Positions the device at the correct distance from the eyes |
| Vertical adjustment | Aligns the optic with the user’s eye level |
| Tilt adjustment | Fine-tunes the viewing angle |
| Position retention | Returns to the adjusted near-eye position after repeated folding |
| Equipment clearance | Accommodates protective eyewear and compatible masks |
| Dovetail lock | Securely holds compatible night vision devices in position |
Compatibility
Compatible with night vision devices and accessories using a standard dovetail interface, including:
Denied Systems PVS-14 with a compatible dovetail J-arm
Denied Systems PVS-31
Denied Systems BNVD-1431 MK2
Other compatible monocular, binocular and panoramic night vision systems
Included
| Included item | Quantity |
|---|---|
| Denied Systems Lightweight Night Vision Mount | 1 |
